M6 Teleskoper Blank Changer milling unit

Zirkonzahn Stand: G14

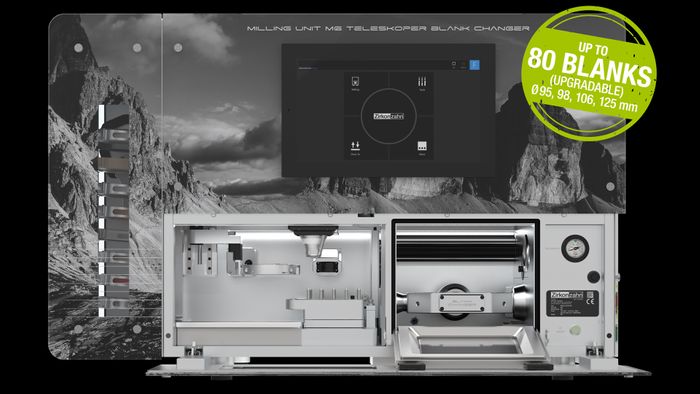

With the new M6 Teleskoper Blank Changer milling unit, Zirkonzahn automates processes,
accelerates procedures, and increases the productivity of the dental workflow. The 5+1 axis
simultaneous milling unit is equipped with a storage for 16 or 64 blanks (upgradable up to 150-200)
as well as a Blank Changer that allows material blanks to be transferred autonomously from the
storage to the orbit and vice versa: once the structure is milled, blanks are reinserted back in their
correct place. This means that restorations made of different dental materials, colours and heights
can now be designed fully automatically without any manual intermediate steps.

The wet and dry processing function permits the milling of all common soft and hard dental
materials. The built-in Teleskoper Orbit SelfLock (Ø 125 mm) allows the processing of material blanks
with a diameter of 95 mm, 98 mm, 106 mm and 125 mm. Thanks to special holders, also glass
ceramics blanks, Raw-Abutment® blanks and zirconia blanks (size 1) can be milled. In addition, the
already known, innovative Teleskoper functions (friction adjustment, Double Milling, Stop & Go) can
be performed with the M6 milling unit.
Zirkonzahn equips the M6 milling unit with the new Performance Spindle by default. Thanks to a
specially developed Permanent Magnet Synchronous Motor (PMSM) which is optimally adapted to
the milling unit, this spindle can reach a maximum torque of 200 Ncm at speeds of 6.000 to 50.000
rpm with a peak power of 2.5 kW. In addition, the milling unit is provided with a contamination-
protected tool chamber which is separate from the milling chamber and features an automatic tool
changer function. The two magazines with 30 slots each ensure a safe and tidy storage of up to 60
milling burs. The tools are automatically checked for type or damage before and after each milling
process.
Always developing innovative technologies and searching for smart, unconventional solutions, all
company’s hardware components and software modules generate open data formats (e.g. STL, OBJ)
which are therefore compatible with all open CAD systems, milling units or 3D printers. Of course,
also open data (scans or design files) from other manufacturers can be processed with Zirkonzahn
wide range of milling units and devices. In this way, customers can benefit from a complete system
which can be personalised and upgraded according to different combination possibilities to meet all
one’s requirements. Moreover, Zirkonzahn CAD/CAM system design can be customised on request in
all colours and different styles, expressing every attitude.
